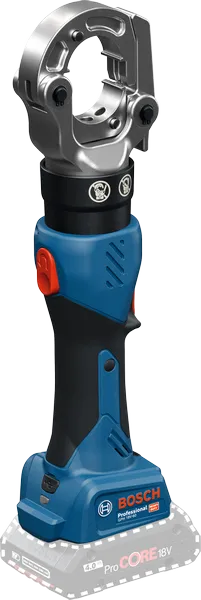

Cordless hydraulic crimping tool

Technical Data
Additional data

• Maximum crimping force: 60 kN

• Maximum crimping range: 300 mm²

• Reading functionality: Yes

• Minimum crimping range: 6 mm²

• Head rotation: 340°

• Maximum stroke length: 17 mm

• Automatic retraction: Yes

• Copper and aluminum connection material: Yes

• Maintenance interval: 20,000 cycles

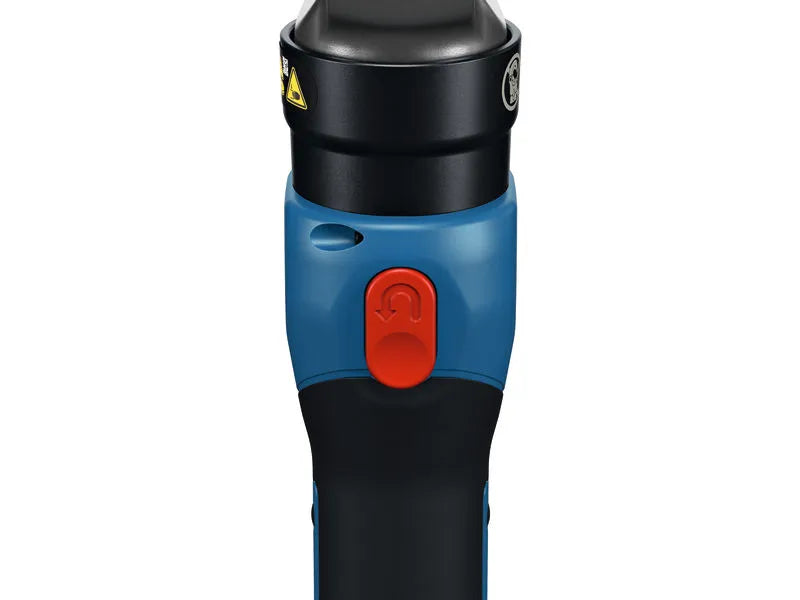

• Manual pressure release: Yes

• Manual retraction stop: Yes

• USB connector: Yes

• Work light: Yes

• Automatic pressure limitation and monitoring: Yes

• USB mode: USB 2.0

• Crimping time: 2 to 5 s (depending on cable cross-section)

Noise Information

• Sound pressure level: 59 dB(A)

• Uncertainty K: 3 dB

• Sound power level: 67 dB(A)

GPH 18V-60 Professional: Additional Information

Product Highlights
If you need to crimp cable lugs onto copper or aluminum cables, the GPH 18V-60 crimping tool is the ideal choice, delivering consistent pressure with instant feedback. The tool provides a reliable and constant output force of 60 kN thanks to an electronic pressure sensor that monitors pressure levels. A convenient status LED indicates when target pressures are reached, as well as the tool’s status and maintenance needs. In addition, the manual pressure release function allows you to retract at any time.

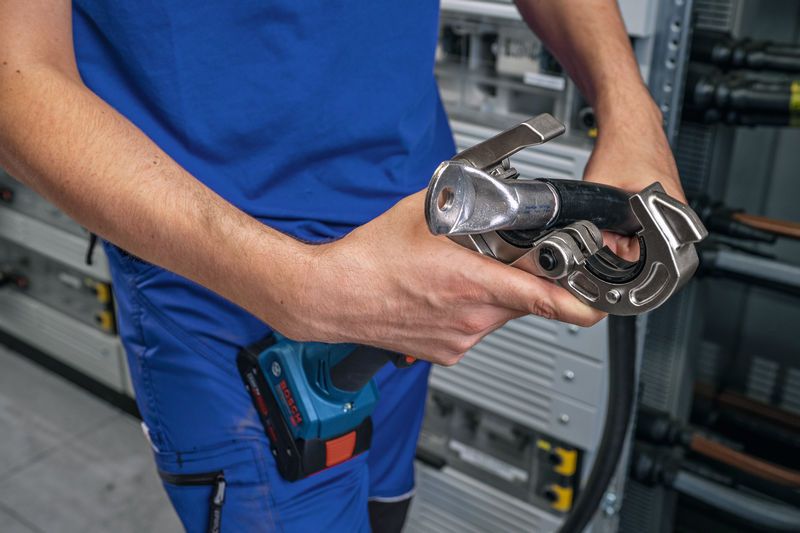

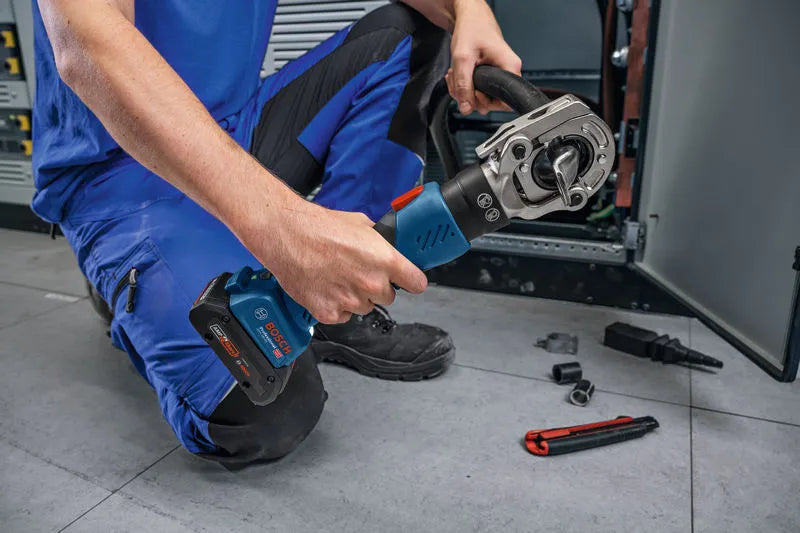

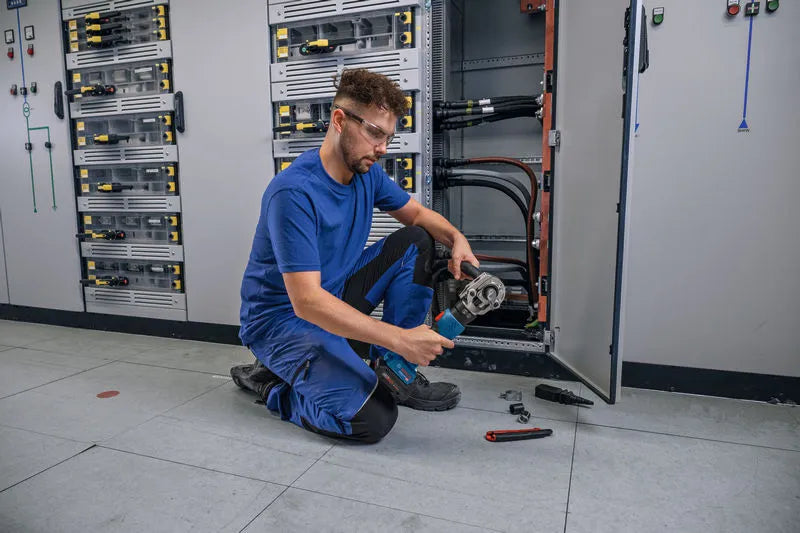

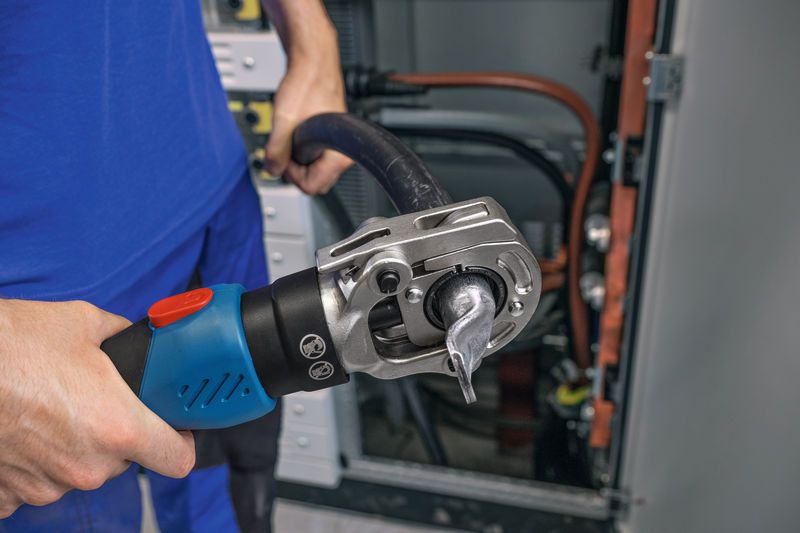

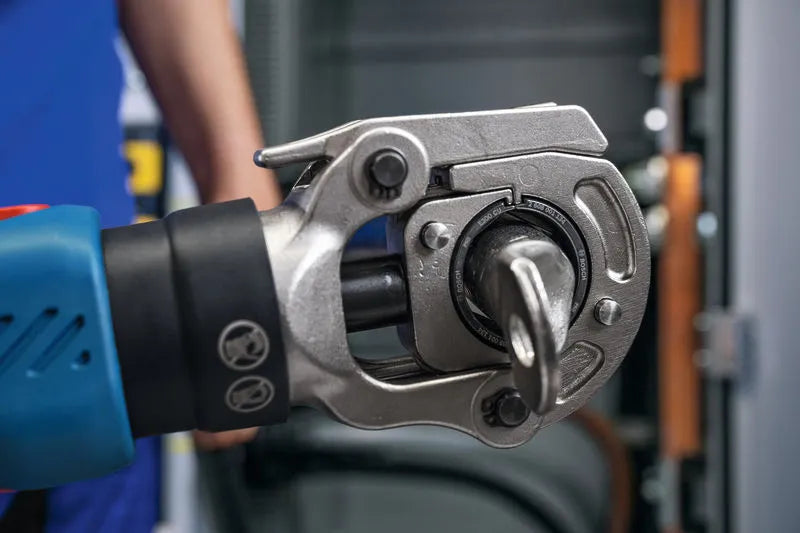

Equipment and Application

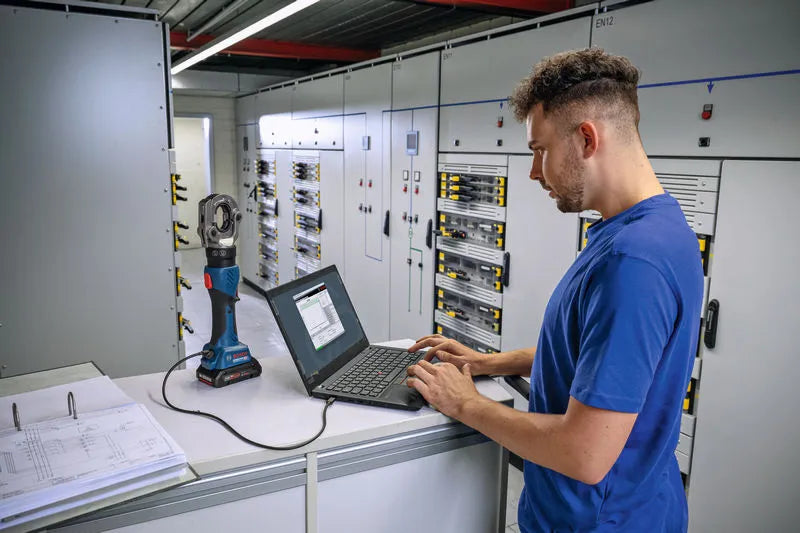

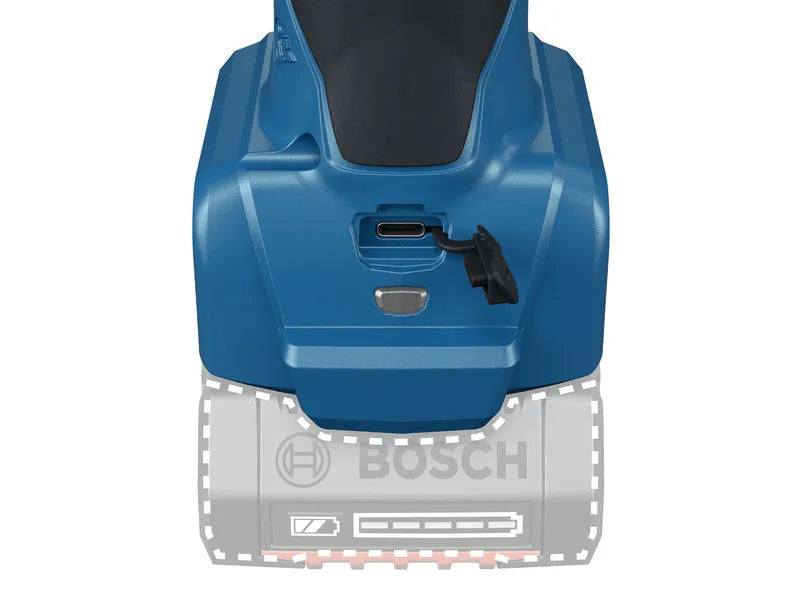

The GPH 18V-60 is suitable for crimping cable lugs on copper and aluminum cables up to 300 mm². Its USB connection and reading software (free and available for download below) provide an overview of the tool’s crimping history, error messages, and maintenance requirements.

Additional Information
Each tool comes with a certificate guaranteeing 100% end-of-line quality control.
