Tripod thread: 1/4", 5/8"
-
Battery voltage: 18.0 V, 12.0 V, 4 × 1.5 V LR14 (C)
-
Laser diode: 500 – 540 nm, < 10 mW
-
Operating temperature: -10 – 40 °C
-
Storage temperature: -20 – 70 °C
-
Laser class: 2
-
Working range, value: 35 m
-
Operating range with receiver: 120 m (radius)
-
Accuracy: ± 0.3 mm/m
-
Self-leveling range: ± 4°
-
Leveling time: 3 s
-
Dust and splash protection: IP65 (except for the battery or battery adapter)
-

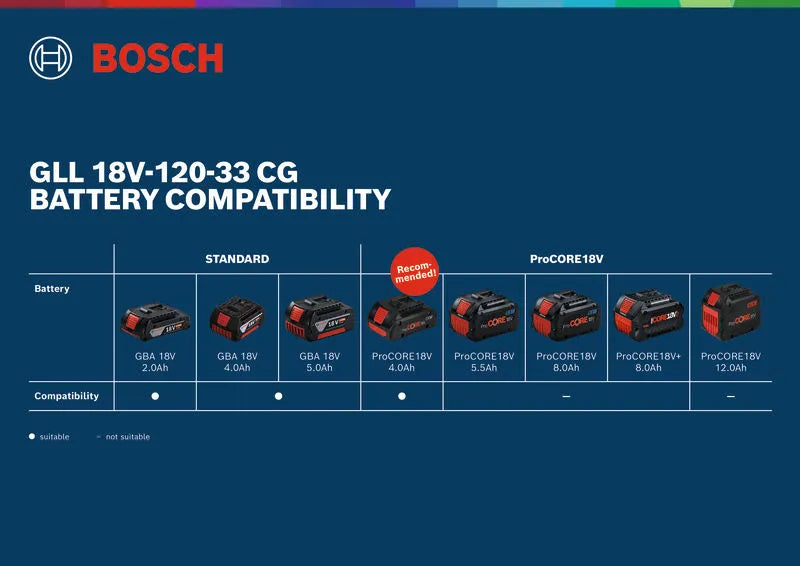

Power supply: 18 V lithium battery, 12 V lithium battery, 4 × 1.5 V LR14 (C)
-
Runtime (max.): 20 h (18 V 4 Ah lithium), 8 h (12 V 2 Ah lithium), 8 h (4 × C, energy-saving mode) in 3-line mode
-
Approx. weight: 1.3 kg
-
Laser line color: Green
-
Projection: 3 × 360° lines
-
Compatible laser receivers: LR 7
-
Weight with 4.0 Ah battery: 1.9 kg
-
Weight with alkaline batteries: 1.8 kg
GLL 18V-120-33 CG Professional: Additional Information
Product Highlights

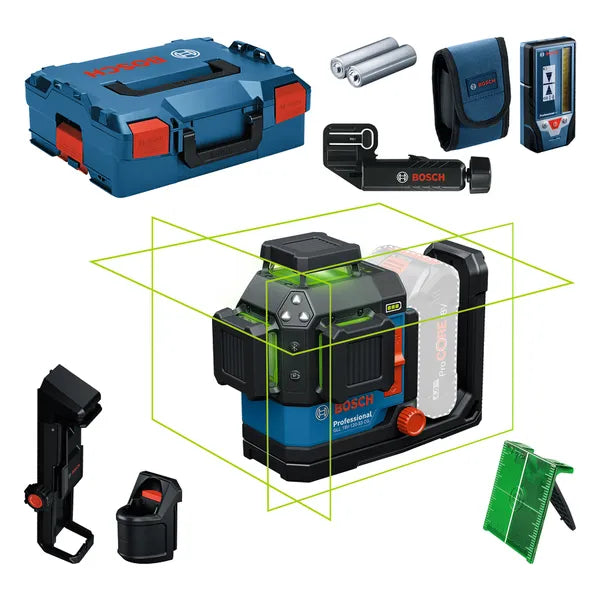

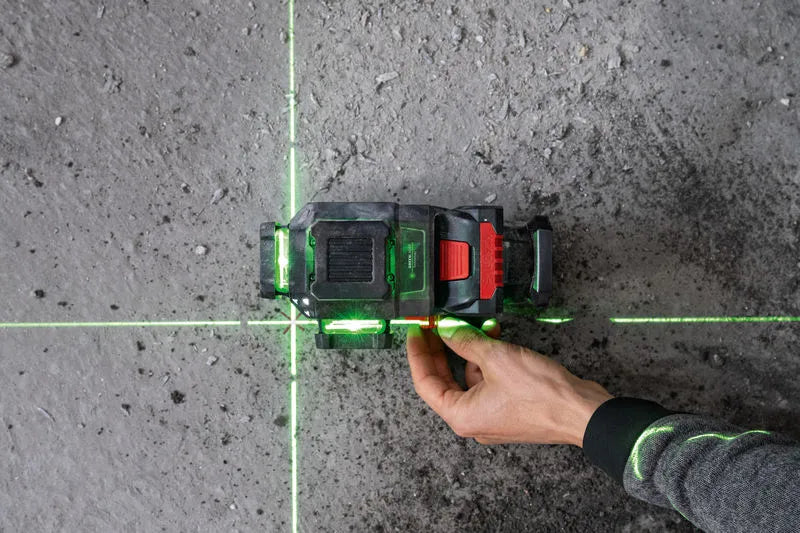

The GLL 18V-120-33 CG Professional provides construction professionals with reliable precision in the toughest working conditions. The triple power supply concept allows you to switch between the 18V and 12V platforms as well as alkaline C cells, helping you avoid downtime and stay focused on the job. This robust floor laser level features a rubber-reinforced housing and laser windows, along with an IP65 rating, so you can work without worrying about water, dust, or impact. To make your work easier, the laser includes a backlit corner keypad for individually selecting laser lines and an integrated mount with strong magnets for quick and secure setup. Fine adjustment of the laser line allows you to shift the vertical line without losing the reference point.
Equipment and Application

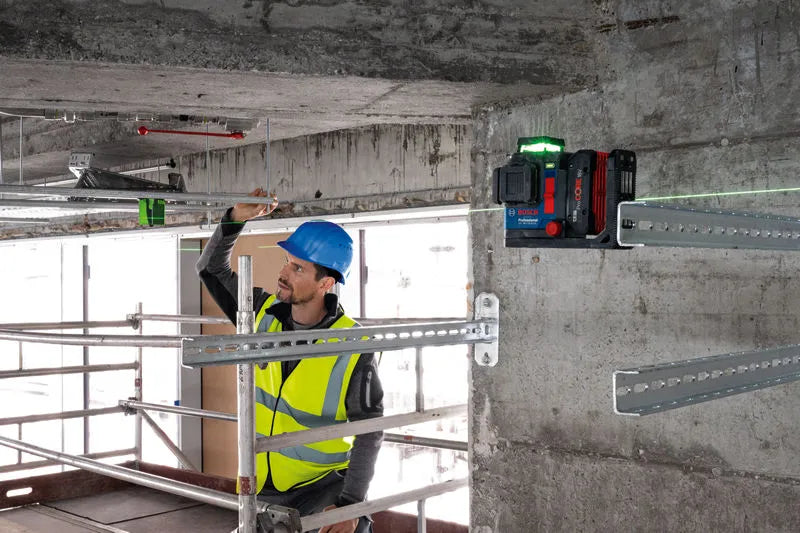

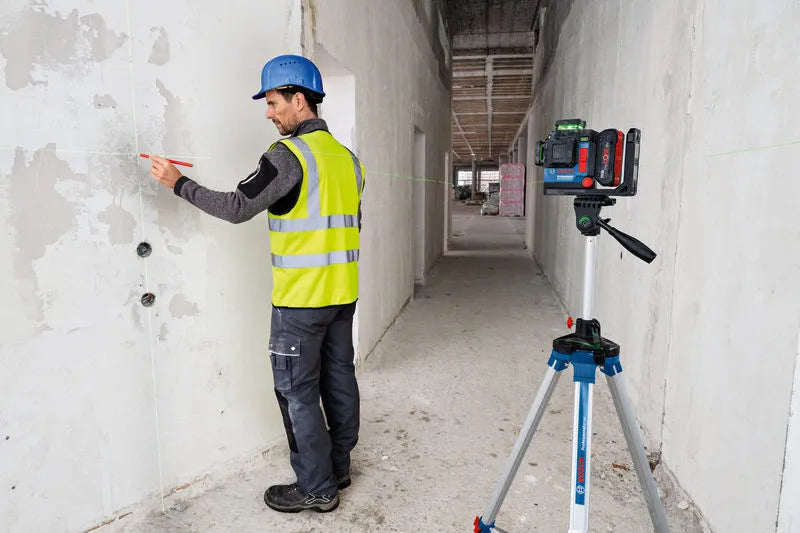

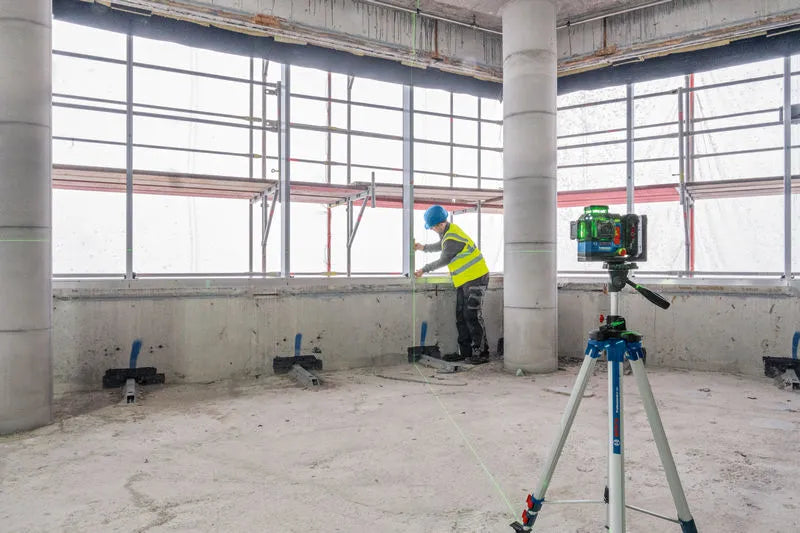

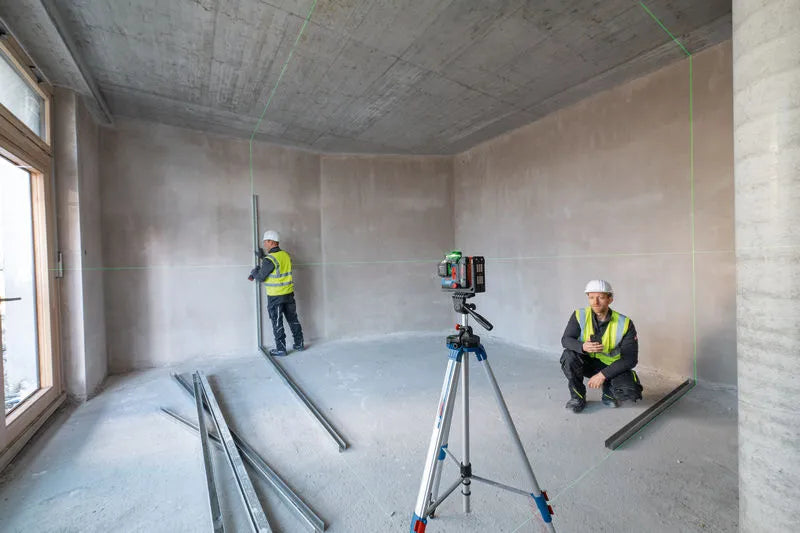

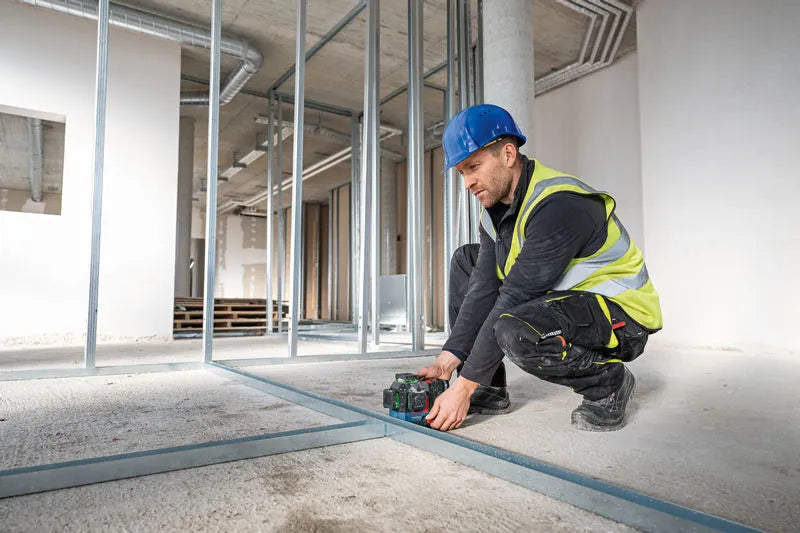

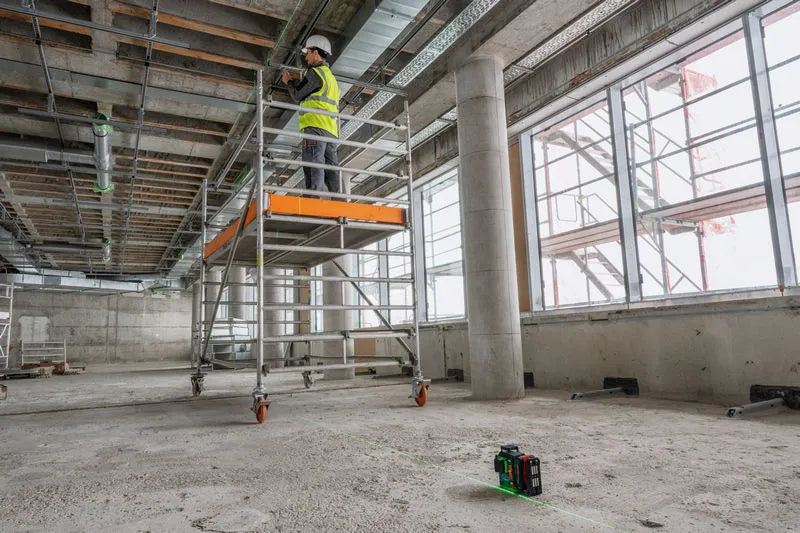

The Levelling Remote app for hands-free line control helps you save time and ensure greater accuracy. Projecting three 360° laser lines, this tool is ideal for construction workers installing drywall, beams, or aligning windows and door frames, as well as for suspended ceiling installations, piping, and outlet alignment.
