Thermal camera - GTC 600 C Professional

GTC 600 C Professional: Additional Information

Product Highlights

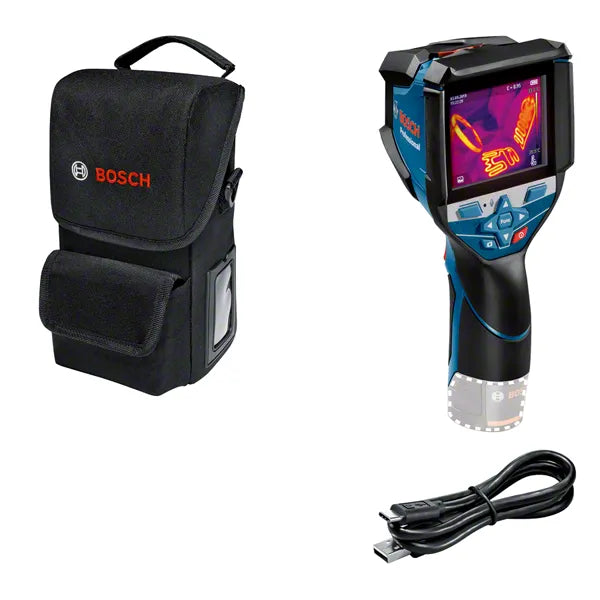

Quickly and easily detect temperature differences, even outdoors – the Bosch GTC 600 C Professional thermal camera provides detailed visualizations of temperature variations and enables smart documentation. It features high thermal resolution and a wide measuring range for maximum thermal imaging applications. Convenient voice notes, the Bosch ThermalOn app, and GTC Transfer software allow easy documentation of thermal images. An intuitive user interface and seamlessly integrated features, such as preset emissivity values and an improved gallery with IR and visual images, deliver successful results with minimal clicks.

Equipment and Application

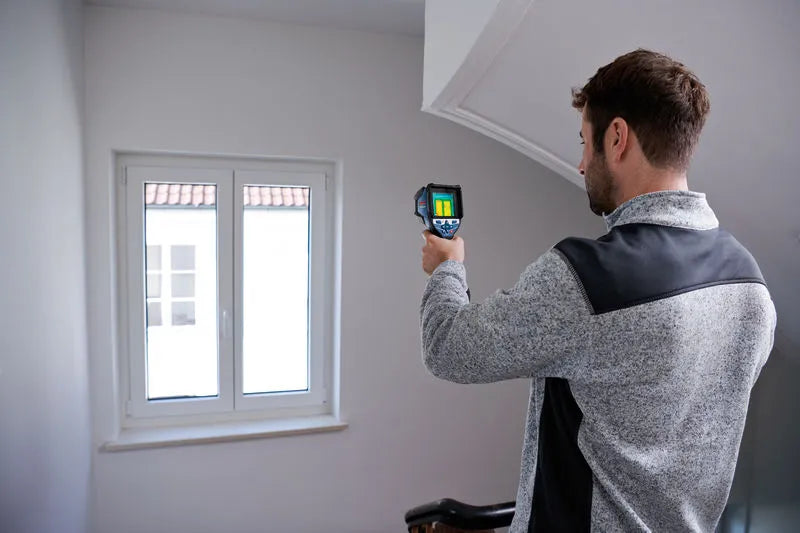

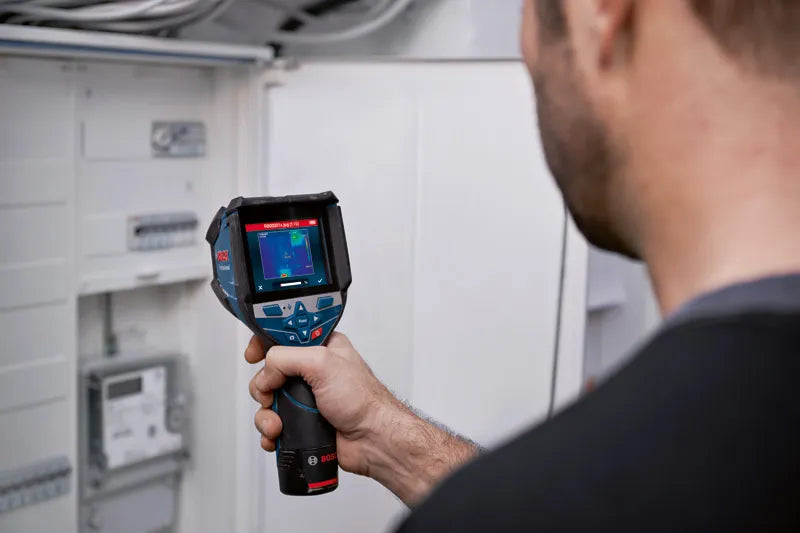

This tool is ideal for detecting insulation problems and unwanted hot or cold spots.

Additional Information

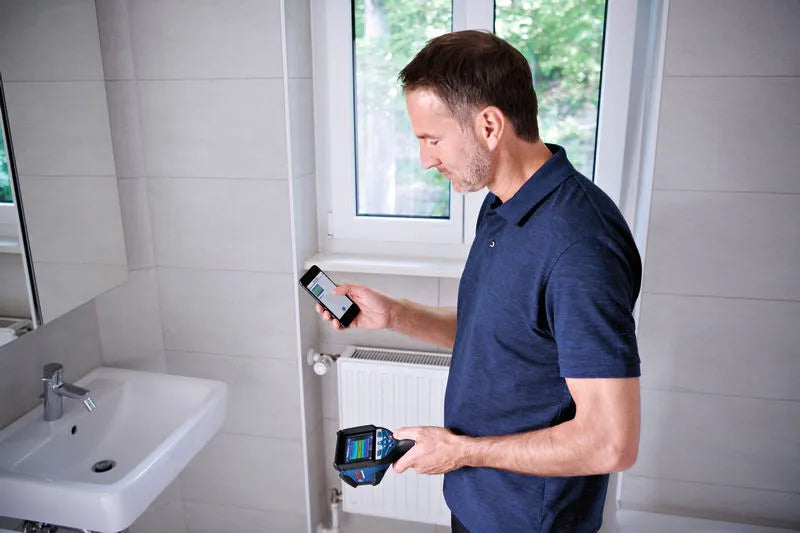

The robust GTC 600 C withstands drops from heights of up to 2 m, features IP54 protection, and can be used on construction sites even under the toughest conditions. In addition, 12 V lithium batteries provide the tool with excellent runtime. Documentation and sharing of measured values are made easy with the corresponding Bosch app thanks to the Simple Exchange functionality for data transfer. This thermal camera offers high accuracy of ±2.0 °C* and a wide temperature range from -20 °C to +600 °C.

Technical Data
Additional data

• Battery voltage: 12.0 V

• Measuring range: -20 °C to +600 °C

• IR measurement accuracy: ±2.0 °C

• Measurement application: Thermal imaging

• Data transfer: Wi-Fi, USB-C®

• Thermal sensitivity (NETD): ≤ 50 mK

• IR sensor size: 256 × 192 pixels

• Resolution: 0.1 °C

• Number of measuring points: 49,152

• Frame buffer (number of images): 600

• Image file format: .jpg

• Shock protection: 2 m

• Dust and splash protection: IP54 (except for the battery or battery adapter)

• Weight: 0.6 kg

• Display size: 3.5"

• Operating temperature: -10 – 45 °C

• Storage temperature: -20 – 50 °C

• Minimum focal distance: 0.3 m

• Thermal image refresh rate: 9 Hz

• Image memory (number of images with audio): 350

• Audio file format: .wav
